AC Vacuum Contactors, CKJ5 Series
CKJ5-80/1.14 AC Vacuum Contactor
Availability:
Available on backorder
CKJ5-80/1.14 AC Vacuum Contactor
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)
Compare

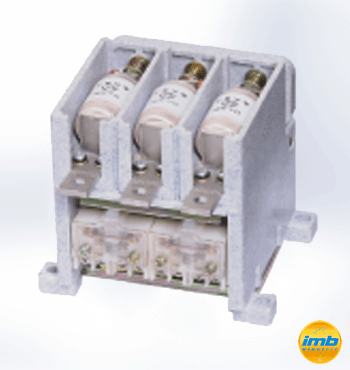

CKJ5-80/1.14 AC Vacuum Contactor
Vacuum contactors use vacuum interrupter as switching elements, the main circuit moveable and stationary contacts are sealed in the vacuum where the atmospheric pressure is lower than 1*10-2 Pa. Vacuum medium has good isolation and arc extinguishing ability, so the vacuum contactor is characterized as high isolation voltage, small contact stroke, low contact wear, long life and so on.
| Specification | ||
| Rated Working voltage | kV | 1.14 |
| Rated Working current | A | 80 |
| Rated Making Capacity | A/50 times | 960 |
| Rated Breaking Capacity | A/50 times | 800 |
| Pick-up Power | W (transient) | 295 |
| Hold Power | W (transient) | 10 |
| Mechanical life | Times | 1*106 |
| Electrical life | Times | 6*104 |
| Weight | kg | 1.8 |
| Control Power Voltage | V | 36, 127, 220 |
| Auxiliary contact | Two NO, One NC | |
| Auxiliary contact capacity | AC-15: Ue:AC380V Ie:0.7A DC-13: Ue:DC220V Ie:0.1A | |
For other products please check product selection table: AC Vacuum Contactor

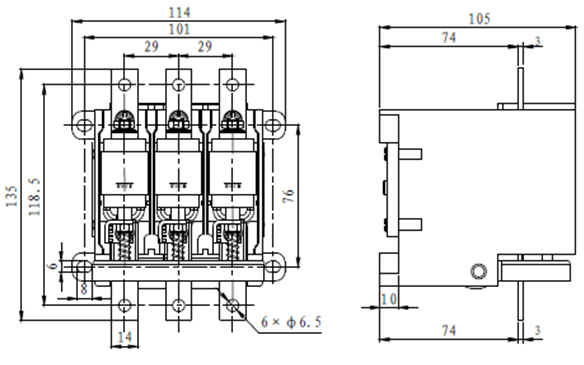

CKJ5-80/1.14 AC Contactor
