AC Vacuum Contactors

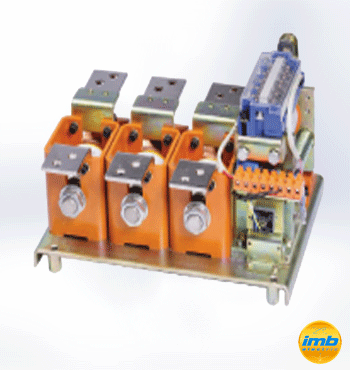

CKJ5-630/1.14 AC Vacuum Contactor
Availability:
Available on backorder
CKJ5-630/1.14 AC Vacuum Contactor
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)
Compare
CKJ5-630/1.14 AC Vacuum Contactor
Vacuum contactors use vacuum interrupter as switching elements, the main circuit moveable and stationary contacts are sealed in the vacuum where the atmospheric pressure is lower than 1*10-2 Pa. Vacuum medium has good isolation and arc extinguishing ability, so the vacuum contactor is characterized as high isolation voltage, small contact stroke, low contact wear, long life and so on.
| Specifications | |
| Operating Voltage | 1.14kV |
| Operating Current | 630A |
| Control Power Voltage | 220\380V(AC) |
| Rated Making Capacity (A/50 times) | 6300A/50 Times |
| Rated Breaking Capacity (A/50 times) | 5000A/50 Times |
| Mechanical Life Time | 1*106 |
| Electrical Life Time | 6*104 |
| Weight | 18kg |
For other products please check product selection table: AC Vacuum Contactor
