AC Vacuum Contactors, CKJ5 Series
CKJ5-125/1.14 AC Vacuum Contactor
Availability:
Available on backorder
125A, 1.14kV, Coil 220Vac
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)
Compare

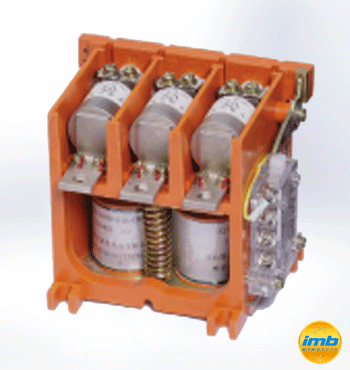

CKJ5-125/1.14 AC Vacuum Contactor, 160A, 1140Vac
GLVAC CKJ-125/1.14 model AC vacuum contactors are suitable in electrical system rated operational voltage up to 1140v to make or break remote motors or system, suitable for the control of AC motor’s frequent, widely used in power systems, oil fields, chemical industry, mine, metallurgists and electrified railway, etc.
| Specifications | |
| Operating Voltage | 1.14 kV |
| Operating Current | 125A |
| Control Power Voltage | 220Vac |
| Rated Making Capacity (A/50 times) | 1500A |
| Rated Breaking Capacity (A/50 times) | 1250A |
| Mechanical Life Time | 1x 106 |
| Electrical Life Time | 6x 104 |
| Weight | 3.7kg |
Check pdf for all details:
 | CKJ5-125/1.14 AC Vacuum Contactor-Catalog |
For other products please check the product selection table: AC Vacuum Contactor
