AC Vacuum Contactors, CKJ11 Series
CK11, 800A/1.5kV AC Vacuum Contactor
Rated Current: 800A, Rated Voltage: 1500V
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)
Compare

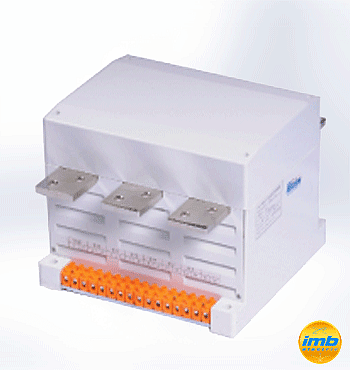

CK11, 800A, 1.5kV AC Vacuum Contactor
CKJ11-800/1.5 AC Vacuum contactors are full closed product adopting new technology, which have the characteristics of high operating voltage, small size, stability, long life, reliability, low pick-up power, low circuit resistance, easier maintenance and so on comparing with the traditional CKJ5 contactors.
| Specifications | |
| Operating Voltage | 1.5kV |
| Operating Current | 800A |
| Control Power Voltage | 127,220V(AC) |
| Rated Making Capacity (A/50 times) | 8000 A/50 Times |
| Rated Breaking Capacity (A/50 times) | 6400 A/50 Times |
| Mechanical Life Time | 1*106 |
| Electrical Life Time | 6*104 |
| Weight | 15.5kg |
For other products please check product selection table: AC Vacuum Contactor
AC Vacuum Contactor CKJ11-800/1.5
