AC Vacuum Contactors, CHV Series

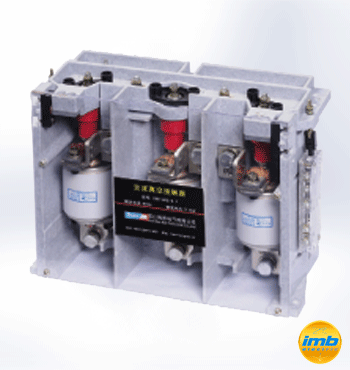

CHV-450/1.14 AC Vacuum Contactor
AC 50Hz, 12kV max, 630A Current
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)
Compare
CHV-450/1.14 AC Vacuum Contactor
CHV series AC Contactors are suitable for following making and breaking electric power system: AC 50Hz, 12kv or below main circuit working voltage level, 630A or below working current level, such as frequent operating and control AC electric motor and magnetic starter. They are widely used in electric power system, petroleum, chemical industry, coal mining, metallurgy and electrified railway and other fields.
| Specifications | |
| Operating Voltage | 1.14 kV |
| Operating Current | 450 A |
| Control Power Voltage | 110,220 V(AC) |
| Rated Making Capacity (A/100 Times) | 4500 |
| Rated Breaking Capacity (A/25 Times) | 3600 |
| Mechanical Life Time | 1*106 Times |
| Electrical Life Time | 6*104Times |
| Weight | 20 Kg |
CHV-450/1.14 AC Vacuum Contactor
