Vacuum Capacitors
GLVAC Fixed Vacuum Capacitors, use vacuum as dielectric with ceramic envelope, which has the following features: High voltage, Small size, High Q value, Stabilization capability, High reliability, Low price. It is widely used in induction heating, medium heating, communication transmitters, and broadcasting, etc. GLVAC capacitor with higher technology and quality.
| GL Type | COMET Old Type | COMET New Type | Capacitance(PF) | Peak Test Voltage(kv) | HF Peak Working Voltage(kv) | Max RF Current(A) | Diameter(mm) | Length(mm) | Datasheet |
| CKTB30/9/20 | 30 | 15 | 9 | 20 | 35 | 109.5 | |||
| CKTB30/9/30 | 30 | 15 | 9 | 30 | 35 | 104.5 | |||
| CKTB50/15/50 | 50 | 21 | 15 | 50 | 62 | 180 | |||
| CKTB50/25/63 | CV2C-50E/35 | CVZV-50AC/35-BAA | 50 | 35 | 21 | 63 | 71.8 | 160 | |
| CKTB75/32/79 | CV3C-75E/45 | CVNA-75AC/45-AAA | 75 | 45 | 32 | 79 | 119 | 196 | |
| CKTB100/10/54 | CV1C-100UC | CVUN-100AC/15-BAJA | 100 | 15 | 9 | 54 | 55 | 133.5 | |
| CKTB100/10/54(Ⅰ) | 100 | 15 | 9 | 54 | 55 | 160.1 | |||
| CKTB100/10/54(Ⅱ) | 100 | 15 | 9 | 54 | 64 | 140 | |||
| CKTB100/10/60 | 100 | 15 | 9 | 60 | 54 | 120 | |||
| CKTB100/10/65 | 100 | 15 | 9 | 65 | 62 | 161.8 | |||
| CKTB100/10/65(Ⅰ) | CV1C-100J/15 | CVZV-100AC/15-BJC-M | 100 | 15 | 9 | 65 | 62 | 168 | |
| CKTB100/15/60 | 100 | 21 | 15 | 60 | 88 | 219 | |||
| CKTB110/7.5/50 | 110 | 10.5 | 7.5 | 50 | 62 | 180 | |||
| CKTB120/10/60 | 120 | 15 | 10 | 60 | 88 | 219 | |||
| CKTB125/3.5/22 | 125 | 5 | 3 | 22 | 35 | 106.5 | |||
| CKTB125/4.8/36 | 125 | 8 | 4.8 | 36 | 35 | 106.5 | |||
| CKTB150/10/65 | 150 | 15 | 9 | 65 | 62 | 168 | |||
| CKTB150/10/65（Ⅰ) | 150 | 15 | 9 | 65 | 62 | 168 | |||
| CKTB170/10/64 | 170 | 15 | 9 | 64 | 55 | 148.3 | |||
| CKTB250/3.5/55 | 250 | 5 | 3 | 55 | 62 | 152.4 | |||
| CKTB250/10/57 | CV1C-250J | CVBA-250AC/15-BEA-L | 250 | 15 | 9 | 57 | 55 | 148.3 | |
| CKTB250/10/94 | CV1C-250UC | CVUN-250AC/15-BAJA | 250 | 15 | 9 | 94 | 55 | 133.5 | |
| CKTB250/28/138 | CV2C-250E/40 | CVSA-250AC/40-AAB | 250 | 40 | 24 | 138 | 143 | 244 | |
| CKTB250/35/220 | CV3C-250E/50 | CVMA-250AC/50-AAB | 250 | 50 | 30 | 137 | 185 | 302 | |
| CKTB250/38/220 | CV3C-650E/55 | CVMA-650AC/55-AAB-F | 250 | 55 | 33 | 137 | 185 | 302 | |
| CKTB300/10.5/85 | 300 | 15 | 9 | 85 | 86 | 190.5 | |||
| CKTB400/5.5/80 | CV1C-400EW/7.5 | CVMI-400AC/7.5-AAC-M | 400 | 7.5 | 4.5 | 80 | 87.4 | 190 | |
| CKTB400/7.5/60 | 400 | 10.5 | 7.5 | 60 | 88 | 219 | |||
| CKTB400/7.5/60(Ⅰ) | 400 | 10.5 | 7.5 | 60 | 88 | 219 | |||
| CKTB450/28/138 | CV2C-450G/40 | CVSA-450AC/40-ADB | 450 | 40 | 24 | 138 | 143 | 244 | |
| CKTB500/3.5/55 | 500 | 5 | 3 | 55 | 62 | 152.4 | |||
| CKTB500/3.5/57 | CV05C-500W/5 | CVBA-500/BC/5-BEA-L | 500 | 5 | 3 | 57 | 55 | 148.3 | |
| CKTB500/3.5/57(Ⅰ) | CV05C-500N/5 | CVBA-500AC/5-BFA-M | 500 | 5 | 3 | 57 | 55 | 148.1 | |
| CKTB500/3.5/57(Ⅴ) | 500 | 5 | 3 | 57 | 55 | 148.3 | |||
| CKTB500/5.3/100 | 500 | 7.5 | 4.5 | 100 | 64 | 140 | |||
| CKTB500/5.6/92 | CVUN-500AC/8-BEJA-Z | 500 | 8 | 4.8 | 92 | 55 | 134.1 | ||
| CKTB500/5.6/92（Ⅰ） | 500 | 8 | 4.8 | 92 | 55 | 134.1 | |||
| CKTB500/7/86 | CV1C 500 NM/10 | CVMN-500BC/10-BEC | 500 | 10 | 6 | 86 | 86 | 132 | |
| CKTB500/8.4/94 | CV1C-500UCD | CVUN-500BC/12-BAJA | 500 | 12 | 7.2 | 94 | 64 | 133.5 | |
| CKTB500/8.4/94(Ⅰ) | 500 | 12 | 7.2 | 94 | 64 | 133.5 | |||
| CKTB500/8.4/94(Ⅱ) | 500 | 12 | 7.2 | 94 | 64 | 137.5 | |||
| CKTB500/8.4/94（Ⅲ） | 500 | 12 | 7.2 | 94 | 64 | 133.5 | |||
| CKTB500/10/65 | 500 | 15 | 9 | 65 | 91 | 205 | |||
| CKTB500/10/67 | CV1C-500UIHN/15 | CVMI-500BC/15-BEDA-BL | 500 | 15 | 9 | 67 | 86 | 194 | |
| CKTB500/10/67(I) | CV1C-500EW/15 | CVMI-500AC/15-AAC-M | 500 | 15 | 10 | 67 | 86 | 190.7 | |
| CKTB500/10/67(II) | CV1C-500Y/15 | CVMI-500BC/15-BAC-L | 500 | 15 | 10 | 67 | 86 | 191 | |
| CKTB500/10/67（Ⅲ） | CV1C-500W/15 | CVMI-500BC/15-ACC-L | 500 | 15 | 10 | 67 | 86 | 191 | |
| CKTB500/10/67（Ⅳ） | CV1C-500U/15 | CVMI-500BC/15-BEC-L | 500 | 15 | 9 | 67 | 86 | 194 | |
| CKTB500/10/69 | CV1C-500T/15 | CVVE-500AC/15-BCA-M | 500 | 15 | 9 | 69 | 86 | 202 | |
| CKTB500/10/100(Ⅰ) | CV1C-500T/15 | CVVE-500AC/15-BCA-M | 500 | 15 | 9 | 100 | 86 | 202 | |
| CKTB500/10/123 | CV1C-500ZMN | CVPO－500BC/15－BECA | 500 | 15 | 9 | 123 | 88 | 141.5 | |
| CKTB500/15/90 | 500 | 20 | 12 | 90 | 73 | 140 | |||
| CKTB500/17.5/170 | CV1C-500I/25 | CVMX-500AC/25-BEAC-J | 500 | 25 | 15 | 170 | 117 | 158.7 | |
| CKTB500/17.5/170(Ⅰ) | CMVX-500AC/25-BUAA-J1 | 500 | 25 | 15 | 170 | 117 | 164.7 | ||
| CKTB650/3.5/63(Ⅰ) | CV05C-650N/5 | CVDU-650CC/5-DEF | 650 | 5 | 3 | 63 | 44.7 | 114.3 | |
| CKTB650/35/240 | CV3C-650E/50 | CVMA-650AC/50-AAB-F | 650 | 50 | 30 | 240 | 185 | 302 | |
| CKTBS650/35/730 | CV3W-650F/50 | CVMA-650FW/50-ABE-F | 650 | 50 | 35 | 730 | 185 | 420 | |
| CKTBF650/35/238 | 650 | 55 | 33 | 238 | 186 | 302 | |||
| CKTBS650/35/467 | 650 | 50 | 30 | 467 | 186 | 444 | |||
| CKTBS650/38/840 | 650 | 55 | 38 | 840 | 195 | 465 | |||
| CKTBS700/12/120 | 700 | 20 | 12 | 120 | 117 | 164.2 | |||
| CKTB750/28/220 | CV2C-750E/40 | CVMA-750AC/40-AAB | 750 | 40 | 24 | 220 | 185 | 297 | |
| CKTB1000/2.1/65 | 1000 | 3 | 1.8 | 65 | 46 | 123.3 | |||
| CKTB1000/2.1/65(Ⅰ) | 1000 | 3 | 1.8 | 65 | 46 | 116.8 | |||
| CKTB1000/3.5/60 | 1000 | 5 | 3.5 | 60 | 88 | 219 | |||
| CKTB1000/3.5/70 | 1000 | 5 | 3 | 70 | 70 | 192 | |||
| CKTB1000/3.5/70(Ⅰ) | CV05C-1000X/5 | CVVI-1000AC/5-ACD-M | 1000 | 5 | 3 | 70 | 70 | 190.7 | |
| CKTB1000/3.5/79 | CV05-1000Y/5 | CVMI-1000AC-BAC-L | 1000 | 5 | 3 | 79 | 86 | 180 | |
| CKTB1000/3.5/79(Ⅰ) | CV05C-1000W/5 | CVMI-1000AC-AAC-L | 1000 | 5 | 3 | 79 | 86 | 180 | |
| CKTB1000/3.5/79（Ⅱ） | CV05C-1000KW/5 | CVVI-1000AC/5-KED-M | 1000 | 5 | 3 | 79 | 70 | 190.7 | |
| CKTB1000/3.5/80(Ⅰ) | 1000 | 5 | 3 | 80 | 88 | 180 | |||
| CKTB1000/3.5/86 | CV05C-1000PM/5 | CVMN-1000AC/5-BEC | 1000 | 5 | 3 | 86 | 86 | 132 | |
| CKTB1000/3.5/89 | CV05C-1000UC | CVUN-1000AC/5-BEJA | 1000 | 5 | 3 | 89 | 55 | 134.1 | |
| CKTB1000/3.5/89(Ⅰ) | 1000 | 5 | 3 | 89 | 55 | 133.5 | |||
| CKTB1000/3.5/89(Ⅲ) | 1000 | 5 | 3 | 89 | 55 | 134.1 | |||
| CKTB1000/10/80(Ⅰ) | CV1C-1000EW/15 | CVNA-1000DC/15-AAA-F | 1000 | 15 | 9 | 80 | 115 | 206 | |
| CKTB1000/10.5/175 | CV1C-1000V | CVMX-1000AC/15-BEAA | 1000 | 15 | 9 | 175 | 117 | 152.2 | |
| CKTB1000/21/215 | CV2C-1000E | CVMA-1000AC/35-AAB | 1000 | 30 | 21 | 215 | 183 | 297 | |
| CKTB1000/28/225 | CV2C-1000E/40 | CVMA-1000AC/40-AAB | 1000 | 40 | 24 | 225 | 183 | 297 | |
| CKTB1000/35/250 | CV3C-1000E | CVLA-1000AC/50-AAB | 1000 | 50 | 30 | 250 | 208 | 370 | |
| CKTBS1000/35/602 | 1000 | 50 | 30 | 602 | 211 | 471 | |||
| CKTBS1000/35/750 | 1000 | 50 | 30 | 750 | 210 | 474 | |||
| CKTBS1000/35/843 | CV3W-1000JB/50 | CVLA-1000CW/50-ABE-N | 1000 | 50 | 30 | 843 | 210 | 478 | |
| CKTBS1200/24/420 | 1200 | 40 | 24 | 420 | 186 | 444 | |||
| CKTBS1300/35/750（Ⅱ） | 1300 | 40 | 50 | 30 | 210 | 550 | |||
| CKTBS1300/35/1085 | CV3W-1300FB/50 | CVLA-1300AW/50-ABE-HN | 1300 | 50 | 30 | 1085 | 210 | 554 | |
| CKTB1400/2.1/63 | CV03C 1400E | CVZV-1400AC/3-BEA | 1400 | 3 | 1.8 | 63 | 55 | 141.5 | |
| CKTB1400/2.8/94 | 1400 | 4 | 2.4 | 94 | 64 | 133.5 | |||
| CKTB1400/3.5/100 | 1400 | 53 | 3 | 100 | 73 | 140 | |||
| CKTB1500/2.1/85(Ⅰ) | 1500 | 3 | 1.8 | 85 | 55 | 133.5 | |||
| CKTB1500/2.8/85 | 1500 | 4 | 2.4 | 85 | 55 | 133.5 | |||
| CKTB1500/3.5/60 | CV05C-1500H/5 | CVVI-1500AC/5-EKA-M | 1500 | 5 | 3 | 60 | 70 | 190.7 | |
| CKTB1500/3.5/65 | CV05C-1500N/5 | CVVI-1500AC/5-ACD-M | 1500 | 5 | 3 | 65 | 70 | 190.7 | |
| CKTB1500/3.5/84 | CV05C-1500D/5 | CVZV-1500AC/5-AAA | 1500 | 5 | 3 | 84 | 70 | 197 | |
| CKTB1500/3.5/100(Ⅰ) | 1500 | 5 | 3 | 100 | 88 | 180 | |||
| CKTB1500/3.5/127 | CV05C-1500PMN | CVPO－1500BC/5－BECA | 1500 | 5 | 3 | 127 | 88 | 131 | |
| CKTB1500/10/108 | CV1C-1500EW/15 | CVSA-1500AC/15-AAB | 1500 | 15 | 9 | 108 | 142.5 | 250 | |
| CKTB1500/24/220 | CV2C-1500E/40 | CVMA-1500AC/40-AAB | 1500 | 40 | 24 | 136 | 182 | 354 | |
| CKTB1500/24/220(Ⅰ) | CV2C-1500F/40 | CVMA-1500AC/40-ADM | 1500 | 40 | 24 | 136 | 182 | 354 | |
| CKTBF1500/24/220 | CV2A-1500E/35 | CVMA-1500AA/35-AAB | 1500 | 35 | 21 | 220 | 183 | 354 | |
| CKTBS1600/28/790 | CV3W-1600E/40 | CVLA-1600BW/40-AAE-HN | 1600 | 40 | 24 | 633 | 212 | 635 | |
| CKTBS1600/28/790(Ⅰ) | 1600 | 40 | 24 | 633 | 210 | 635 | |||
| CKTBS1600/42/1000 | 1600 | 60 | 42 | 1000 | 320 | 584 | |||
| CKTB2000/2.1/86 | 2000 | 3 | 1.8 | 86 | 64 | 133.5 | |||
| CKTB2000/2.1/86(Ⅰ) | 2000 | 3 | 1.8 | 86 | 64 | 133.5 | |||
| CKTB2000/2.1/86(Ⅱ) | 2000 | 3 | 1.8 | 86 | 64 | 133.5 | |||
| CKTB2000/3.5/63 | CVO5C-2000SIHN/5 | CVMI-2000AC/5-BEDA-BL | 2000 | 5 | 3 | 63 | 86 | 180 | |
| CKTB2000/3.5/63(Ⅰ） | 2000 | 5 | 3 | 63 | 86 | 180 | |||
| CKTB2000/3.5/114 | CV05C-2000M | CVPO－2000BC/5－BEC－L | 2000 | 5 | 3 | 114 | 88 | 147 | |
| CKTB2000/5.6/171 | CVMX-2000BC/8-BEAC-J | 2000 | 8 | 4.8 | 171 | 117 | 152.2 | ||
| CKTB2000/10/200 | 2000 | 15 | 9 | 200 | 183 | 259 | |||
| CKTBF2000/24/211 | 2000 | 35 | 21 | 211 | 214 | 372 | |||
| CKTB2000/25/220 | CV2C-2000E/35 | CVLA-2000AC/35-AAB | 2000 | 35 | 21 | 136 | 212 | 368 | |
| CKTBS2050/35/1000 | 2050 | 50 | 35 | 1000 | 330 | 610 | |||
| CKTBS2050/35/1000 | 2300 | 15 | 9 | 106 | 142.5 | 250 | |||
| CKTB3000/7/264 | 3000 | 10 | 7 | 264 | 183 | 241 |
| GL Type | COMET Old Type | COMET New Type | Capacitance(PF) | Peak Test Voltage(kv) | RF Peak Working Voltage (kv) | Max RF Current(A) | Diameter(mm) | Length(mm) | |
| CKT1/21/8 | 1 | 30 | 18 | 8 | 19.6 | 82.6 | |||
| CKT2/21/9 | 2 | 30 | 18 | 9 | 19.6 | 82.6 | |||
| CKT3/21/10 | 3 | 30 | 18 | 10 | 19.6 | 82.6 | |||
| CKT5/21/12 | 5 | 30 | 18 | 12 | 19.6 | 82.6 | |||
| CKT6/25/47 | 6 | 35 | 25 | 47 | 58.9 | 163 | |||
| CKT12/25/52 | 12 | 35 | 25 | 52 | 58.9 | 163 | |||
| CKT25/18/58 | 25 | 25 | 18 | 58 | 68 | 114.3 | |||
| CKT25/25/67 | 25 | 35 | 25 | 67 | 58.9 | 163 | |||
| CKT50/9/27 | MC1C-50E/15 | CFMN-50CAC/15-AF-G | 50 | 15 | 9 | 27 | 47 | 62 | |
| CKT50/18/68 | 50 | 25 | 18 | 68 | 68 | 114.3 | |||
| CKT50/25/77 | 50 | 35 | 25 | 77 | 58.9 | 163 | |||
| CKT50/35/90 | 50 | 35 | 30 | 90 | 59 | 163 | |||
| CKT75/18/75 | 75 | 25 | 18 | 65 | 68 | 114.3 | |||
| CKT75/25/82 | 75 | 35 | 25 | 82 | 58.9 | 163 | |||
| CKT80/10/43 | MC1C-80E/15 | CFMN-80CAC/15-AF-G | 80 | 15 | 9 | 43 | 48 | 62 | |
| CKT80/10/76 | 80 | 15 | 9 | 76 | 45 | 62 | |||
| CKT84/10/35 | 84 | 15 | 9 | 35 | 38 | 43 | |||
| CKT90/10/48 | MC1C-90E/15 | CFMN-90CAC/15-AF-G | 90 | 15 | 9 | 48 | 48 | 62 | |
| CKT90/10/78 | 90 | 15 | 9 | 78 | 45 | 62 | |||
| CKT100/10/50 | 100 | 15 | 9 | 50 | 36.2 | 43 | |||
| CKT100/10/50(Ⅰ) | 100 | 15 | 9 | 50 | 38 | 43 | |||
| CKT100/10/54 | MC1C100E/15 | CFMN-100CAC/15-AF-G | 100 | 15 | 9 | 54 | 48 | 62 | |
| CKT100/10/80 | 100 | 15 | 9 | 80 | 45 | 62 | |||
| CKT100/18/80 | 100 | 25 | 18 | 75 | 68 | 114.3 | |||
| CKT100/21/108 | 100 | 30 | 18 | 108 | 48 | 73 | |||
| CKT100/25/87 | 100 | 35 | 25 | 87 | 58.9 | 163 | |||
| CKT100/25/126 | MC3C-100E/35 | CFMN-100EAC/35-DH-G | 100 | 35 | 21 | 126 | 64 | 87 | |
| CKT100/42/145 | 100 | 50 | 30 | 135 | 90 | 130 | |||
| CKT120/7.5/71 | 120 | 10 | 6 | 71 | 45 | 62 | |||
| CKT120/10/65 | MC1C-120E/15 | CFMN-120CAC/15-AF-G | 120 | 15 | 9 | 65 | 48 | 62 | |
| CKT125/21/135 | 125 | 30 | 18 | 135 | 48 | 73 | |||
| CKT130/3.5/35 | 130 | 5 | 3 | 35 | 40 | 30 | |||
| CKT130/10/70 | MC1C-130E/15 | CFMN-130CAC/15-AF-G | 130 | 15 | 9 | 70 | 48 | 62 | |
| CKT140/10/76 | MC1C-140E/15 | CFMN-140CAC/15-AF-G | 140 | 15 | 9 | 76 | 48 | 62 | |
| CKT150/7/75 | 150 | 10 | 6 | 75 | 45 | 62 | |||
| CKT150/10/81 | MC1C-150E/15 | CFMN-150CAC/15-AF-G | 150 | 15 | 9 | 81 | 48 | 62 | |
| CKT150/17.5/135 | 150 | 25 | 15 | 135 | 48 | 73 | |||
| CKT150/21/90 | 150 | 30 | 20 | 90 | 67.5 | 164 | |||
| CKT175/25/168 | MC3C-175E/35 | CFMN-175EAC/35-DH-G | 175 | 35 | 21 | 168 | 64 | 87 | |
| CKT180/7/63 | 180 | 10 | 6 | 63 | 45 | 62 | |||
| CKT180/10/97 | MC1C -180E/15 | CFMN-180CAC/15-AF-G | 180 | 15 | 9 | 97 | 48 | 62 | |
| CKT200/10/50 | 200 | 15 | 9 | 50 | 36.2 | 43 | |||
| CKT200/10/50(Ⅰ) | 200 | 15 | 9 | 50 | 38 | 43 | |||
| CKT200/10/107 | MC1C -200E/15 | CFMN-200CAC/15-AF-G | 200 | 15 | 9 | 107 | 48 | 62 | |
| CKT200/17.5/143 | 200 | 25 | 15 | 143 | 48 | 73 | |||
| CKT200/21/95 | 200 | 30 | 21 | 95 | 67.5 | 164 | |||
| CKT200/25/164 | 200 | 35 | 21 | 164 | 64 | 87 | |||
| CKT200/42/280 | 200 | 50 | 30 | 220 | 116 | 137 | |||
| CKT210/10/113 | MC1C -210E/15 | CFMN-210CAC/15-AF-G | 210 | 15 | 9 | 113 | 48 | 62 | |
| CKT250/10/134 | MC1C -250E/15 | CFMN-250AAC/15-DE-G | 250 | 15 | 9 | 134 | 48 | 52 | |
| CKT250/21/100 | 250 | 30 | 20 | 100 | 67.5 | 164 | |||
| CKT260/3.5/35 | 260 | 5 | 3 | 35 | 40 | 30 | |||
| CKT260/10/132 | MC1C -260E/15 | CFMN-260AAC/15-DE-G | 260 | 15 | 9 | 132 | 48 | 52 | |
| CKT300/21/140 | 300 | 30 | 18 | 140 | 86 | 92 | |||
| CKT300/42/240 | 300 | 50 | 30 | 230 | 116 | 137 | |||
| CKT350/10/132 | MC05C -350E/15 | CFMN-350AAC/15-DE-G | 350 | 15 | 9 | 132 | 48 | 52 | |
| CKT450/33/170 | CF3C-450F/55 | CFZV-450AAC/55-HC-G | 450 | 55 | 33 | 223 | 145.5 | 140 | |
| CKT500/2.5/35 | 500 | 3.6 | 2 | 35 | 42 | 30 | |||
| CKT500/3.5/30 | 500 | 5 | 3 | 30 | 36.2 | 43 | |||
| CKT500/8.5/126 | MC05C-500E/12 | CFMN-500AAC/12-DE-G | 500 | 12 | 7.2 | 126 | 48 | 52 | |
| CKT500/30/120(Ⅰ) | 500 | 42 | 30 | 120 | 110 | 160 | |||
| CKT750/7/116 | MC05C -750E/10 | CFMN-750AAC/10-DE-G | 750 | 10 | 6 | 116 | 48 | 52 | |
| CKT1000/5.6/115 | MC05C -1000E/8 | CFMN-1000AAC/8-DE-G | 1000 | 8 | 4.8 | 115 | 48 | 52 | |
| CKT1000/14/160 | 1000 | 20 | 12 | 160 | 126 | 97 | |||
| CKT1000/17.5/180 | 1000 | 25 | 15 | 180 | 126 | 97 | |||
| CKT1000/17.5/271 | CF1C-1000H/25 | CFSA-1000DAC/25-GC-G | 1000 | 25 | 15 | 271 | 142.5 | 97 | |
| CKT1000/28/162 | CF2C-1000E/40 | CFNA-1000BAC/40-KB-G | 1000 | 40 | 24 | 162 | 115 | 230 | |
| CKT1000/35/350(Ⅰ) | CF3C-1000E/50 | CFMA-1000AAC/50-BC-G | 1000 | 50 | 30 | 296 | 180.5 | 158 | |
| CKT1500/10/190 | CF1C-1500F/15 | CFSA-1500AAC/15-HC-G | 1500 | 15 | 9 | 190 | 142.5 | 84 | |
| CKT1500/24/400 | 1500 | 35 | 24 | 400 | 205 | 156 | |||
| CKT1500/25/400 | CF2C-1500E/35 | CFMA-1500AAC/35-BC-G | 1500 | 35 | 21 | 303 | 180.5 | 158 | |
| CKT2000/10/200 | CF1C-2000E/15 | CFSA-2000AAC/15-CA-G | 2000 | 15 | 9 | 200 | 142.5 | 84 | |
| CKT2000/24/266 | CF2C-2000E/35 | CFMA-2000AAC/35-BC-G | 2000 | 35 | 21 | 266 | 185 | 158 | |
| CKT2000/24/400 | 2000 | 35 | 24 | 400 | 205 | 156 | |||
| CKT2000/28/400 | 2000 | 40 | 24 | 400 | 209 | 156 | |||
| CKT2000/33/400 | CF3C-2000F/55 | CFLA-2000AAC/55-PC-G | 2000 | 55 | 33 | 283 | 210 | 210 | |
| CKT2500/17/246 | CF2C-2500E/30 | CFMA-2500AAC/30-BC-G | 2500 | 30 | 18 | 246 | 185 | 158 | |
| CKT2500/20/400 | 2500 | 28 | 20 | 400 | 205 | 156 | |||
| CKT3500/20/400 | 3500 | 28 | 20 | 400 | 233 | 156 | |||
| CKT4000/10/400 | 4000 | 15 | 10 | 400 | 185 | 106 |

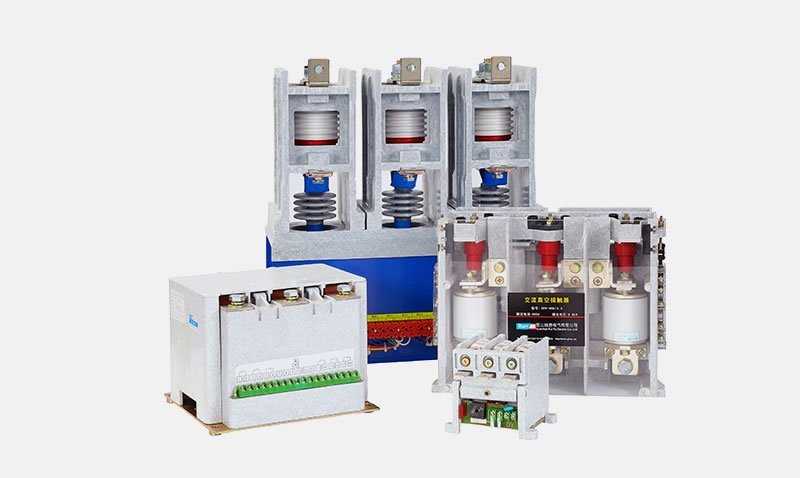

GLVAC AC Contactors
Vacuum contactors use vacuum interrupter as switching elements. The vacuum medium has good isolation and arc extinguishing ability. GLVAC has a wide variety of AC Contactors, these are CKJ11 Series, CKJ5 Series, 7.2kv Series, 12kv Series.
CKJ11 Series: Features of CKJ11 Series vacuum contactors: Vacuum contractors are full closed product adopting new technology, which has the characteristics of high operating voltage, small size, stability, long life, reliability, low pick-up power, low circuit resistance, easier maintenance, and so on comparing with the traditional CKJ5 contactors. CKJ11 contractors have got a national patent.
CHV Series: CHV series AC Contactors are suitable for the following making and breaking electric power system: AC 50Hz, 12kv or below the main circuit working voltage level, 630A or below working current level, such as frequent operating and control AC electric motor and magnetic starter. They are widely used in electric power systems, petroleum, chemical industry, coal mining, metallurgy and electrified railway, and other fields.
CKJ5 Series: Features of CKJ5 contactors: Vacuum contactors use vacuum interrupter as switching elements, the main circuit moveable and stationary contacts are sealed in the vacuum where the atmospheric pressure is lower than 1*10-2 Pa. Vacuum medium has good isolation and arc extinguishing ability, so the vacuum contactor is characterized as high isolation voltage, small contact stroke, low contact wear, long life and so on.
7.2kv Series: Features of CKG4 ac contactors: The extremely strong capacity of making and breaking, long electric life, safety, and reliability, low noise, easier installation, and maintenance. Features of JCZ5 ac contactors: Small size, lightweight, easier to use and maintain.
12kv Series: Features of CKG4 ac contactors: The extremely strong capacity of making and breaking, long electric life, safety, and reliability, low noise, easier installation, and maintenance.Features of JCZ5 ac contactors: Small size, lightweight, easier to use and maintain.
CKJ11 Series
| GL Type | Rated Current （A） | Rated Voltage (KV) | Rated Making Capacity (A) | Rated Breaking Capacity(A) | Limited Breaking Capacity(A) | Electrical Life (Million times) | Mechanical Life (Million times) | Pick-up Power (W transient) | Hold Power (W) | |
| CKJ11-160/1.5 | 160 | 1.5 | 1600 | 1280 | 3000 | 1 | 6 | 265 | 30 | |
| CKJ11-250-1.5 | 250 | 1.5 | 2500 | 2000 | 4500 | 1 | 6 | 265 | 30 | |
| CKJ11-400/1.5 | 400 | 1.5 | 4000 | 3200 | 4500 | 1 | 6 | 342 | 38 | |
| CKJ11-800/1.5 | 800 | 1.5 | 8000 | 6400 | 8000 | 1 | 6 | 1041 | 117 | |
| CKJ11-3000 | 3000 | 1.5 | 30000 | 24000 | 24000 | 1 | 6 | 7000 | 300 | |
| CKJ11-500/3.6 | 500 | 3.6 | 5000 | 4000 | 5000 | 1 | 6 | 400 | 45 | |
| CKJ11-630/3.6 | 630 | 3.6 | 6300 | 5000 | 6300 | 1 | 6 | 400 | 45 |
CHV Series
| GL Type | Rated Current （A） | Rated Voltage (KV) | Rated Making Capacity (A) | Rated Breaking Capacity(A) | Limited Breaking Capacity(A) | Electrical Life (Million times) | Mechanical Life (Million times) | Pick-up Power (W transient) | Hold Power (W) | |
| CHV-400/3.3 | 400 | 3.3 | 4000 | 3200 | 4000 | 1 | 6 | 424.5 | 17 | |
| CHV-450/3.6 | 450 | 3.6 | 4500 | 3600 | 13000 | 0.3 | 6 | * | * | |
| CHV-450/1.14 | 450 | 1.14 | 4500 | 3600 | 26000 | 0.3 | 6 | * | * |
CKJ5 Series
| GL Type | Rated Current （A） | Rated Voltage (KV) | Rated Making Capacity (A) | Rated Breaking Capacity(A) | Limited Breaking Capacity(A) | Mechanical Life (Million times) | Electrical Life (Million times) | Hold Power (W) | Pick-up Power (W transient) | |
| CKJ5-80/1.14 | 80 | 1.14 | 980 | 800 | 2000 | 1 | 6 | 295 | 10 | |
| CKJ5-125/1.14 | 125 | 1.14 | 1500 | 1250 | 3000 | 1 | 6 | 345 | 21 | |
| CKJ5-160/1.14 | 160 | 1.14 | 1600 | 1280 | 3000 | 1 | 6 | 345 | 21 | |
| CKJ5-250/1.14 | 250 | 1.14 | 2500 | 2000 | 4500 | 1 | 6 | 500 | 30 | |
| CKJ5-400/1.14 | 400 | 1.14 | 4000 | 3200 | 4500 | 1 | 6 | 860 | 28 | |
| CKJ5-630/1.14 | 630 | 1.14 | 6300 | 5000 | 6000 | 1 | 6 | 1530 | 50 |
7.2kv Series
| GL Type | Rated Current （A） | Rated Voltage (KV) | Rated Making Capacity (A) | Rated Breaking Capacity (A) | Limited Breaking Capacity (A) | Mechanical Life (Million times) | Electrical Life (Million times) | Pick-up Power (W transient) | Hold Power (W) | |
| JCZ5-160/7.2kv | 160 | 7.2 | 1600 | 1280 | 1600 | 0.5 | 10 | 1300 | 40 | |
| JCZ5-160/7.2kv | 160 | 7.2 | 1600 | 1280 | 1600 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| CKG4-160/7.2kv | 160 | 7.2 | 1600 | 1280 | 1600 | 0.5 | 10 | 1000 | 130 | |
| CKG4-160/7.2kv | 160 | 7.2 | 1600 | 1280 | 1600 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) | |
| JCZ5-250/7.2kv | 250 | 7.2 | 2500 | 2000 | 2500 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| JCZ5-250/7.2kv | 250 | 7.2 | 2500 | 2000 | 2500 | 0.5 | 10 | 1300 | 40 | |
| CKG4-250/7.2kv | 250 | 7.2 | 2500 | 2000 | 2500 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) | |
| CKG4-250/7.2kv | 250 | 7.2 | 2500 | 2000 | 2500 | 0.5 | 10 | 1000 | 130 | |
| CKG4-630/7.2kv | 630 | 7.2 | 6300 | 5000 | 6300 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) | |
| JCZ5-400/7.2kv | 400 | 7.2 | 4000 | 3200 | 4000 | 0.5 | 10 | 1300 | 40 | |
| JCZ5-400/7.2kv | 400 | 7.2 | 4000 | 3200 | 4000 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| CKG4-400/7.2kv | 400 | 7.2 | 4000 | 3200 | 4000 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) | |
| CKG4-400/7.2kv | 400 | 7.2 | 4000 | 3200 | 4000 | 0.5 | 10 | 1000 | 130 | |
| JCZ5-630/7.2kv | 630 | 7.2 | 6300 | 5000 | 6300 | 0.5 | 10 | 1300 | 40 | |
| JCZ5-630/7.2kv | 630 | 7.2 | 6300 | 5000 | 6300 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| CKG4-630/7.2kv | 630 | 7.2 | 6300 | 5000 | 6300 | 0.5 | 10 | 1000 | 130 |
12kv Series
| GL Type | Rated Current （A） | Rated Voltage (KV) | Rated Making Capacity (A) | Limited Breaking Capacity (A) | Rated Breaking Capacity (A) | Mechanical Life (Million times) | Pick-up Power (W transient) | Electrical Life (Million times) | Hold Power (W) | |
| JCZ5-160/12kv | 160 | 12 | 1600 | 1280 | 1600 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| JCZ5-250/12kv | 250 | 12 | 2500 | 2000 | 2500 | 0.5 | 10 | 1400 | 80 | |
| JCZ5-400/12kv | 400 | 12 | 4000 | 3200 | 4000 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| JCZ5-630/12kv | 630 | 12 | 6300 | 5000 | 6300 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| JCZ5-160/12kv | 160 | 12 | 1600 | 1280 | 1600 | 0.5 | 10 | 1400 | 80 | |
| JCZ5-250/12kv | 250 | 12 | 2500 | 2000 | 2500 | 0.5 | 10 | 930(Closing Power) | 300(Opening Power) | |
| JCZ5-400/12kv | 400 | 12 | 4000 | 3200 | 4000 | 0.5 | 10 | 1400 | 80 | |
| JCZ5-630/12kv | 630 | 12 | 6300 | 5000 | 6300 | 0.5 | 10 | 1400 | 80 | |
| CKG4-160/12kv | 160 | 12 | 1600 | 1280 | 1600 | 0.5 | 10 | 1000 | 130 | |
| CKG4-250/12kv | 250 | 12 | 2500 | 2000 | 2500 | 0.5 | 10 | 1000 | 130 | |
| CKG4-400/12kv | 400 | 12 | 4000 | 3200 | 4000 | 0.5 | 10 | 1000 | 130 | |
| CKG4-630/12kv | 630 | 12 | 6300 | 5000 | 6300 | 0.5 | 10 | 1000 | 130 | |
| CKG4-160/12kv | 160 | 12 | 1600 | 1280 | 1600 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) | |
| CKG4-250/12kv | 250 | 12 | 2500 | 2000 | 2500 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) | |
| CKG4-400/12kv | 400 | 12 | 4000 | 3200 | 4000 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) | |
| CKG4-630/12kv | 630 | 12 | 6300 | 5000 | 6300 | 0.5 | 10 | 900(Closing Power) | 300(Opening Power) |
GLVAC
Showing 1–32 of 219 results
