Single Pole Double Throw, SPDT
Part Series
Voltage Rating
Rated Voltage DC or 60Hz
Max Carry DC or 60Hz
FORM
Max. Contact Res.
Max Operate Time
Max Release Time
Mech Life
Weight Nom

GH1
3.5kV
3.5 KV Peak
25 A
C=Single Pole Double Throw
0.010Ω
6 ms
6 ms
2 million cycles
28 g

GH3
3.5kV
3.5 KV Peak
18 A
C=Single Pole Double Throw
0.020Ω
6 ms
6 ms
2 million cycles
28 g

GH5
3.5kV
3.5 KV Peak
8 A
C=Single Pole Double Throw
0.500Ω
6 ms
6 ms
1 million cycles
28 g

G41C
5kV
5 KV Peak
30 A
C=Single Pole Double Throw
0.020Ω
10 ms
10 ms
2 million cycles
28 g

G45C
5kV
5 KV Peak
20 A
C=Single Pole Double Throw
0.050Ω
10 ms
10 ms
2 million cycles
21 g

GH2
8kV
8 KV Peak
25 A
C=Single Pole Double Throw
0.010Ω
6 ms
6 ms
2 million cycles
40 g

GH4
8kV
8 KV Peak
15 A
C=Single Pole Double Throw
0.020Ω
6 ms
6 ms
2 million cycles
40 g

GH6
8kV
8 KV Peak
8 A
C=Single Pole Double Throw
0.500Ω
6 ms
6 ms
1 million cycles
40 g

G43C
10kV
10 KV Peak
25 A
C=Single Pole Double Throw
0.020Ω
10 ms
10 ms
2 million cycles
28 g

G81C
10kV
10 KV Peak
5 or 10 A
C=Single Pole Double Throw
0.050Ω
10 ms
10 ms
2 million cycles
71 g

G15
15kV
15 KV Peak
12 A
C=Single Pole Double Throw
1.000Ω
15 ms
9 ms
1 million cycles
85 g

G18
15kV
15 KV Peak
30 A
C=Single Pole Double Throw
0.025Ω
15 ms
9 ms
1 million cycles
85 g

G2
15kV
15 KV Peak
50 A
C=Single Pole Double Throw
0.012Ω
15 ms
9 ms
1 million cycles
85 g

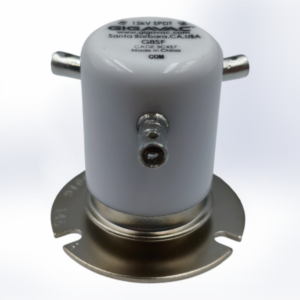

G8
15kV
15 KV Peak
30 A
C=Single Pole Double Throw
0.025Ω
15 ms
9 ms
1 million cycles
85 g

G9
20kV
20 KV Peak
75 A
C=Single Pole Double Throw
0.010Ω
30 ms
8 ms
1 million cycles
300 g

G25
25kV
25 KV Peak
18 A
C=Single Pole Double Throw
0.100Ω
15 ms
15 ms
1 million cycles
320 g

G50
25kV
25 KV Peak
110 A
C=Single Pole Double Throw
0.005Ω
100 ms
15 ms
1 million cycles
992 g

G52
25kV
25 KV Peak
150 A
C=Single Pole Double Throw
0.003Ω
100 ms
15 ms
1 million cycles
992 g

G62C
25kV
25 KV Peak
18 A
C=Single Pole Double Throw
0.500Ω
15 ms
15 ms
1 million cycles
340 g

G61C
35kV
35 KV Peak
10 A
C=Single Pole Double Throw
1.000Ω
15 ms
15 ms
1 million cycles
336 g

G60C
35kV
35 KV Peak
12 A
C=Single Pole Double Throw
1.000Ω
15 ms
15 ms
1 million cycles
85 g

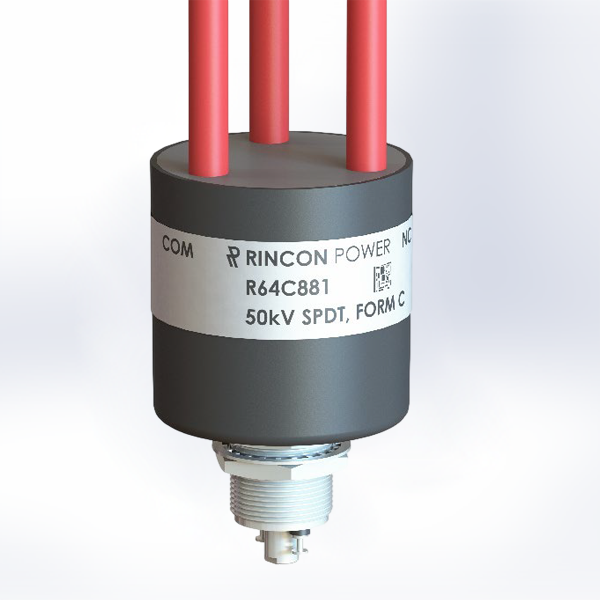

G64C
50kV
50 KV Peak
10 A
C=Single Pole Double Throw
1.000Ω
15 ms
15 ms
1 million cycles
340 g

G71C
70kV
70 KV Peak
10 A
C=Single Pole Double Throw
2.000Ω
20 ms
15 ms
500,000 cycles
336 g

SPDT High Voltage Relay

Showing all 27 results

Showing all 27 results
