G8SF 15kV, SPDT High Voltage Relay

Gigavac
Availability:

4 in stock


15kV, 30A, SPDT (NO+NC),

  • Shipment: in 1-2 business days (for stocks)
  • Free Shipment over 500$
  • Easy payment online or bank wire transfer (with proforma invoice)

$760.00 $970.00

4 in stock

Checkout



Gigavac G8SF 15kV, SPDT High Voltage Relay

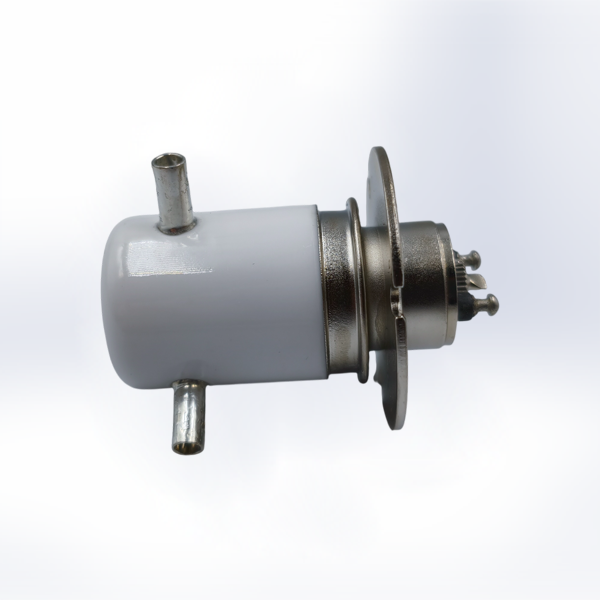

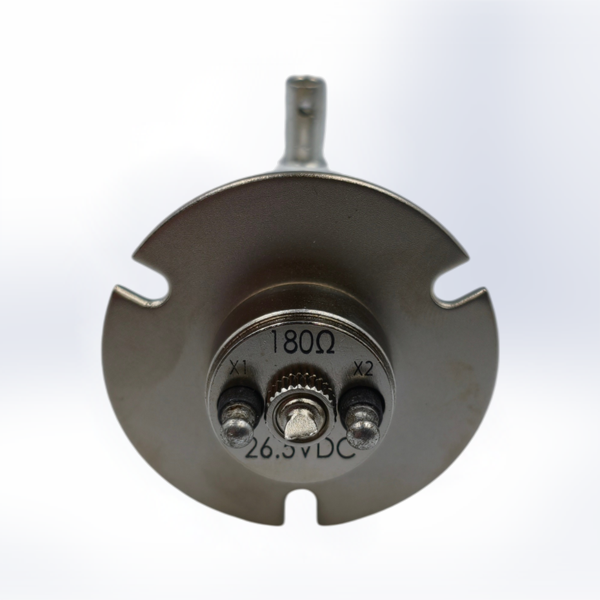

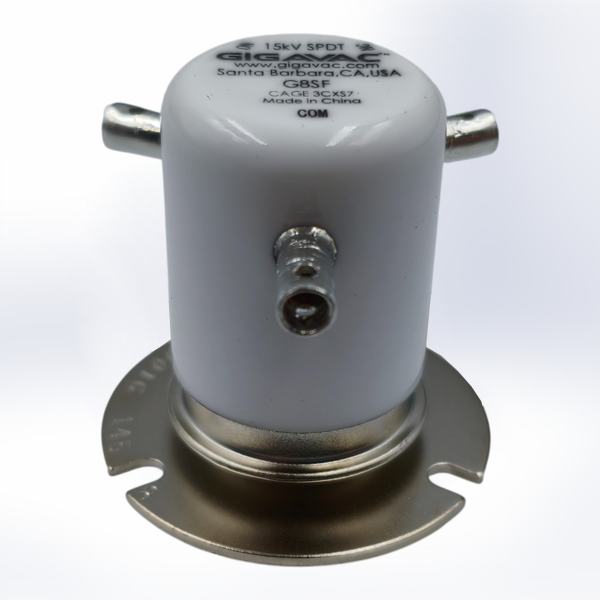

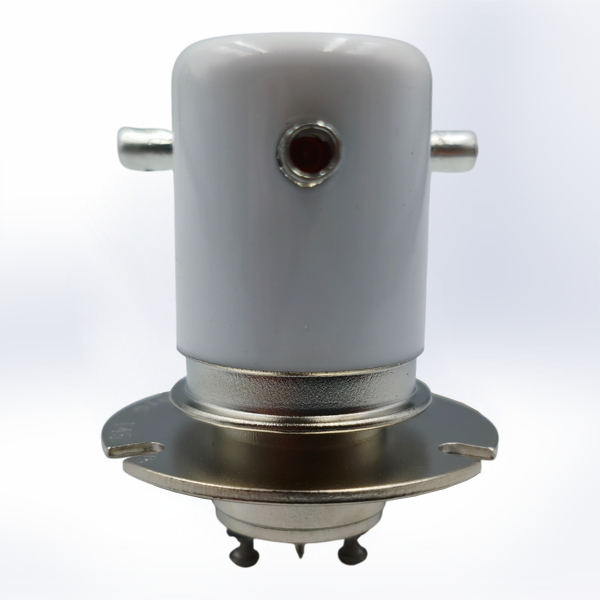

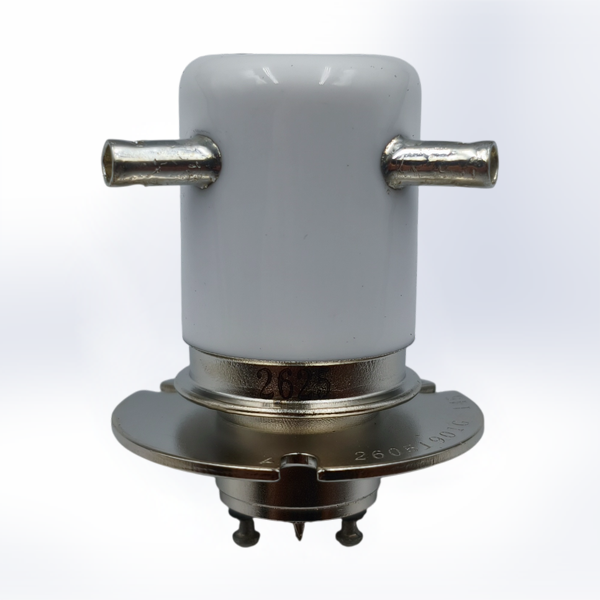

Gigavac G8SF Single Pole Double Throw, SPDT Relay offers a normally open and a normally closed contact set in one relay. Durable tungsten contacts improve load switching capability. An excellent alternative in RF circuits. Mounting options in any axis. Solder or convenient threaded HV connections.

COIL RATINGS

Nominal, Volts dc 12 26.5 115
Pick-up, Volts dc, Max. 8 16 80
Drop-out, Volts dc .5 – 10 1 – 10 5 – 50
Coil Resistance (Ohms ±10%) 48 180 2900

PART NUMBER SYSTEM

G8 S P
High Voltage / Power Terminal Connections S = Solder Pot
W = Screw
Mounting P = Through Panel
F = Flange
Coil Voltage Blank = 26.5 Vdc
-12Vdc = 12Vdc
-115Vdc 115Vdc



Technical Specifications
Voltage Rating 15kV
Rated Voltage (KV Peak) DC or 60Hz 15 kV Peak
Current, Continuous Max Carry (Amps) DC or 60Hz  30 Amps
FORM Single Pole Double Throw
Max. Contact Res. (Ohms) 0.025
 Max Operate Time (ms) 15
 Max Release Time (ms) 9
 Mech Life (cycles) 1 million

G8 15kV, SPDT High Voltage Relay

Weight 28 g
