R2 Series High Voltage Relay
Available on backorder
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)

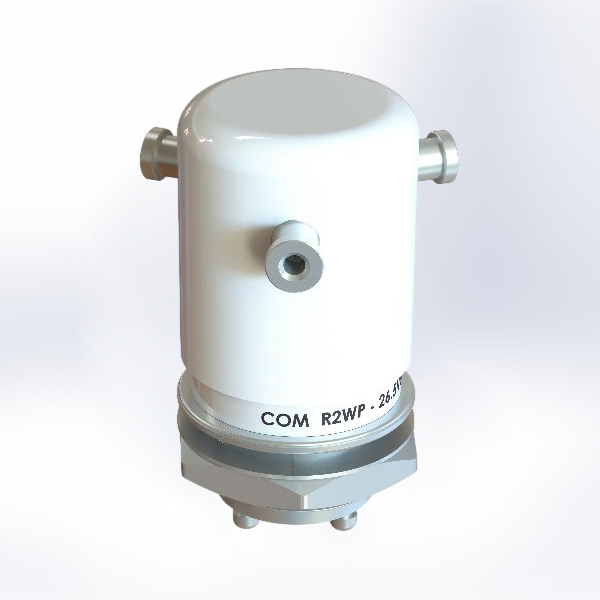

R2 Series High Voltage Relay
The R2 series high voltage relay is specifically designed for applications that require carrying high current under high voltage. Users commonly prefer it for systems up to 15kV. The design optimizes performance for low-loss operation in RF circuits, delivering high efficiency and reliability.
The relay uses contacts made of molybdenum and copper. This combination offers low and stable contact resistance. As a result, the R2 series can continuously carry up to 50 amps of current — the highest current rating among relay models with the same size and form factor.
It features a Single Pole Double Throw (SPDT) configuration, which includes both Normally Open (NO) and Normally Closed (NC) contacts. This structure easily adapts to different control requirements. When coil power is applied or removed, continuity switches between contacts to maintain operation.
The R2 series stands out with its robust design and reliable contact performance. With its high current carrying capacity, it is a dependable solution for both industrial systems and sensitive RF applications.
| Product Specifications | |
| Maximum Voltage | 15 kV |
| Continuous Current | 50 A (DC or 60Hz) |
| Contact Configuration | SPDT (Single Pole Double Throw) |
| Contact Form | Form C = NO + NC |
| Application Type | Carry Only |
| Coil Voltage Options | 12VDC or 26.5VDC |
| Mounting Type | Panel Mount or Flange Mount |
| Contact Material | Molybdenum / Copper |
| Dielectric Medium | Vacuum |
| HV Connection Options | Solder Pot or Screw |
| Coil Terminal | Turret Terminals |
