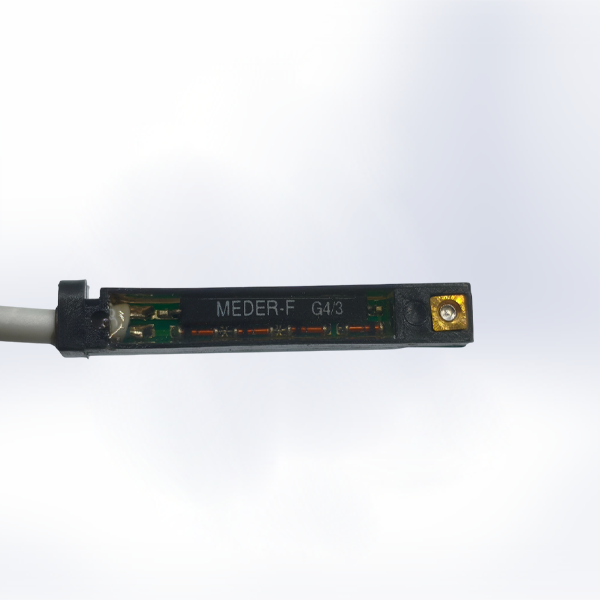

Omal RV2I Magnetic Reed Switch / Sensor
Omal Srl RV2I reed mechanic switch and electronic magneto resistive proximity sensors with PNP static outlet for pneumatic cylinders with T-shaped slot. It knows as omal rv21, omal rs21 magnetic reed swich. RV2I can be used instead of RS2I.
|Operating Voltage||10 – 240 V AC/DC|
|Switching current (max.)||400mA at 25°C|
|Load (max.)||10W DC – 8VA AC|
|Operation indicator||LED Yellow|
|Cable||PVC 3×0,14 mm2|
|Working Temperature||-20°C / +85°C|
Omal is a registered trademark of Omal srl.
