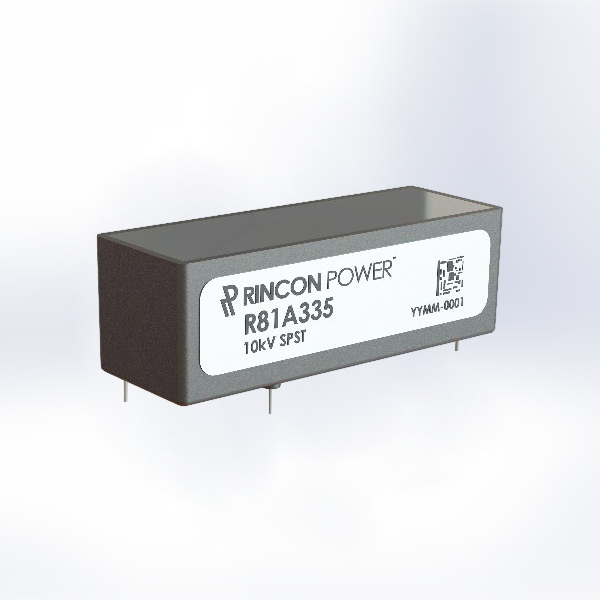

R81A Series High Voltage Relay
Available on backorder
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)
R81A Series High Voltage Relay
The R81A series high voltage relay is designed to handle demanding load conditions and offers various compact form factor options. Moreover, with its high-dielectric encapsulation material, it ensures excellent external insulation.
Additionally, thanks to its RF-compliant design, it delivers high performance in applications requiring precise switching and reliable isolation. The R81A series operates safely in systems up to 7kV. Furthermore, its tungsten contacts enable high-performance make/break switching, and it can continuously carry up to 10A of current.
Commonly used in antenna tuning units (ATUs) and high-voltage test equipment, the relay features an SPST-NO (Single Pole Single Throw – Normally Open) configuration. Specifically, the circuit remains open until coil power is applied, upon which the contacts close. Therefore, this simple structure provides an effective solution for isolation and safe control.
For detailed product specifications, please refer to the table below.
| Product Specifications | |
| Maximum Voltage | 7 kV |
| Continuous Current | 5 A or 10 A (DC or 60Hz) |
| Contact Configuration | SPST-NO (Single Pole Single Throw – Normally Open) |
| Contact Form | Form A = Normally Open |
| Application Type | Make/Break Load Switching |
| Coil Voltage Options | 12VDC or 26.5VDC |
| Mounting Type | PCB Type or Panel Mount |
| Contact Material | Molybdenum / Tungsten |
| Dielectric Medium | Vacuum |
| HV Connection Options | PCB Pins (5A max), PCB Pins (10A max), Flying Leads, or Threaded Terminals |
| Coil Terminal | PCB Pins or Threaded Terminals |
