Bus Bars
RODCONT HDBB-1833 900A, 48V DC High Current Bus Bar
Availability:
Available on backorder
- Shipment: in 1-2 business days (for stocks)
- Free Shipment over 500$
- Easy payment online or bank wire transfer (with proforma invoice)

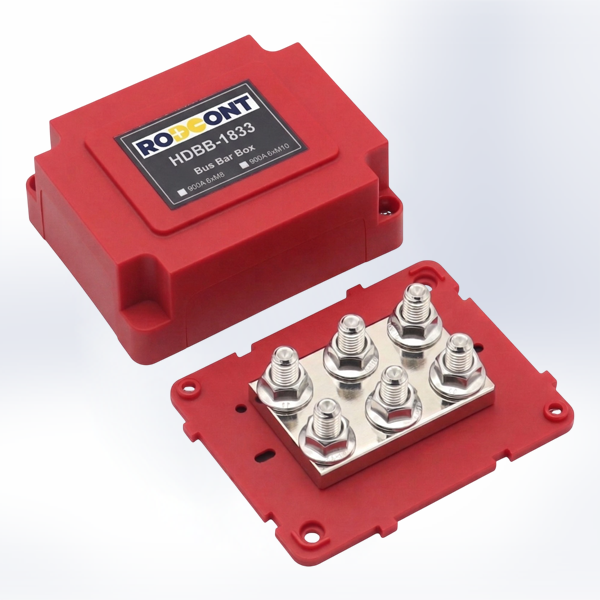

RODCONT HDBB-1833 900A, 48V DC High Current Bus Bar
High-capacity power distribution block featuring a glass fiber reinforced base and enclosure for maximum durability in marine and industrial environments.
| Specifications | |
| Maximum Continuous Current | 900 Amper |
| Max Operating Voltage | 48V DC |
| Terminal Stud Size | 6 x M10 |
| Base & Cover Material | Nylon, Glass Fiber Reinforced |
| Bus Material | Nickel Plated Red Copper |
| Screws and Studs | 304 Stainless Steel |
| Dimensions (without Cover) | 126 x 101 x 35 mm |
| Downloads | |
| Outline Drawing | [HDBB-1833] Download PDF |
