G38WP 25kV, SPST-NC High Voltage Relay

Gigavac
Availability:

Available on backorder


25kV, 8A, SPST-NC

  • Shipment: in 1-2 business days (for stocks)
  • Free Shipment / Incoterms-CPT
  • Easy payment online or bank wire transfer (with proforma invoice)

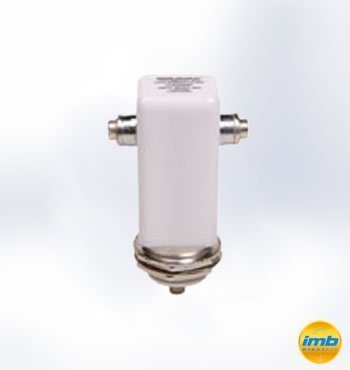

Gigavac G38WP 25kV SPST-NC High Voltage Relay

Gigavac G38 Single Pole Single Throw, SPST Relay offers a normally closed contact feature relay. High resistance coil means a low current requirement for driver circuits, works both on D.C as well as High frequencies.

Specifications

Contact & Relay RatingsUnitsG38
Contact FormY
Contact ArrangementSPST-NC
Contact Material (moveable/stationary)molybdenum /tungsten
DielectricInert Gas
Voltage, Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)kV Peak28
Voltage, Operating Max., Contacts & to Base (15 μA Leakage Max.) dc or 60 HzkV Peak25
Current, Load SwitchingContact Factory**
Current, Continuous Carry Max dc or 60 HzAmps15
Coil Hi-Pot (V RMS, 60 Hz)V500
Resistance, Contact Max @ 1A, 28 Vdcohms1.0
Operate Timems18
Release Timems20
Life, Mechanicalcycles2 million
Weight, Nominalg (oz)342 (12)
Vibration, Operating, Sine (55-500 Hz PeakG’s10
Shock, Operating, 1/2 Sine11ms (Peak)G’s30
Temperature Ambient Operating°C-55 to +125

COIL RATINGS

Nominal, Volts dc1226.5115
Pick-up, Volts dc, Max.81680
Drop-Out, Volts dc.5 – 51 – 105 – 50
Coil Resistance (Ohms ±10%)241202000

PART NUMBER SYSTEM

G38WP
High Voltage/ Power Terminal ConnectionsW= Screw
MountingP = Through Pane
Coil Voltage*Blank = 26.5 Vdc -12Vdc = 12 Vdc -115Vdc = 115 Vdc

For other products please check product selection table: SPST Relays HV Relays

G38 25kV SPST-NC High Voltage Relay

Weight342 g
